NBCC 2020 Article 4.2.4.1 requires a site-specific slope stability analysis wherever grade changes exceed 3 m in Cape Breton. Wind-driven moisture cycles and freeze-thaw on the island’s shale‑till slopes create failure mechanisms that conventional desktop models miss. We run limit equilibrium profiles with Spencer and Morgenstern‑Price methods, inputting pore-pressure data from vibrating-wire piezometers installed in the low‑permeability till matrix. The 46.3° N latitude drives 110+ freeze‑thaw days per year at elevations above 200 m, so we always pair the analysis with in‑situ permeability measurements from packer tests and triaxial CU tests on Shelby tube samples to define effective strength envelopes for the weathered shale contact. Every deliverable includes a sensitivity matrix for groundwater rise, seismic coefficient kh from the NBCC Cape Breton spectral values, and a remediation staging plan if the static factor of safety drops below 1.5.
A 0.02 increase in the seismic coefficient kh drops the factor of safety by 15 % in Cape Breton’s till‑covered shale slopes.
Process and scope
Local considerations
A 14‑unit condominium excavation in Sydney River cut into a 22‑degree slope mantled with 4 m of colluvium over McAulay Brook shale. The original design assumed drained friction angles from textbook correlations. February rain and a thaw cycle triggered a 60‑cm scarp 8 m behind the crest after the cut reached full depth. Our back‑analysis showed the effective cohesion in the colluvium was 30 % lower than assumed, and the perched water table had risen 1.7 m above the design phreatic surface. We redesigned the cut with a 1H:1V bench, installed two rows of passive soil nails, and added a toe drain connected to the municipal storm system. Total remediation cost reached CA$ 340,000. The lesson: in Cape Breton’s weathered shale terrain, pore‑pressure assumptions and residual strength parameters govern the outcome more than any other variable.
Applicable standards
NBCC 2020 (Division B, Part 4 – Structural Design), CSA A23.3-19 (Design of Concrete Structures – Anchorage), ASTM D6467-21 (Torsional Ring Shear Test), ASTM D4767-20 (Consolidated Undrained Triaxial Test), and FHWA-NHI-05-123 (Soil Slope and Landslide Stabilization) are the applicable standards and guidelines.
Related services
Slope hazard screening
Rapid desktop review using LiDAR DEM and surficial geology maps from the Nova Scotia Department of Natural Resources. Identifies pre‑existing landslide features and drainage anomalies before fieldwork begins.
Geotechnical drilling and sampling
HQ‑diameter core drilling through overburden and into bedrock with RQD logging. Shelby tube and block sampling at slide‑plane depth for laboratory shear strength testing.
Instrumentation and monitoring
Vibrating‑wire piezometers, inclinometer casings, and automated total stations for real‑time displacement tracking during staged excavation. Data feeds back into the stability model monthly.
Remediation design and peer review

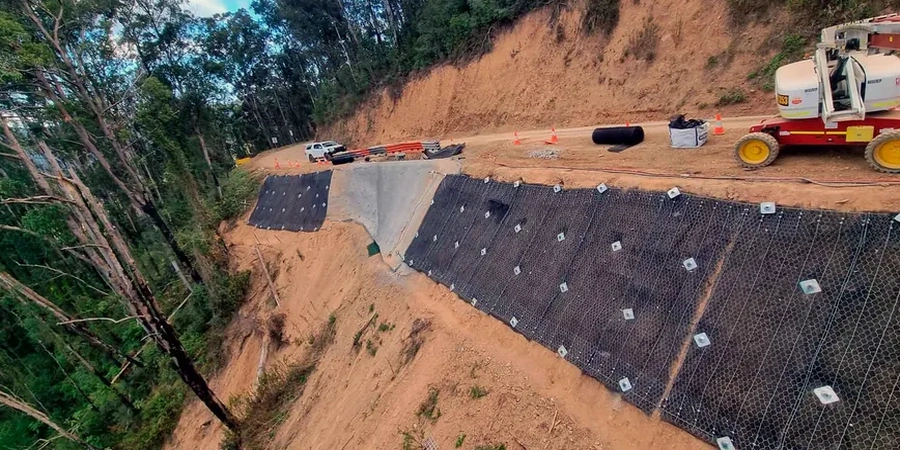

Design of soil nail arrays, tie‑back anchors, drainage systems, and reinforced earth berms. Independent third‑party review reports for municipal permitting and insurance requirements.
Typical parameters
Questions and answers
What is the typical cost range for a slope stability analysis in Cape Breton?
Which seismic coefficient should be used for Cape Breton per NBCC 2020?
For pseudo‑static analysis, we use a kh value between 0.04 and 0.12, derived from the site‑specific spectral acceleration Sa(0.2) and Sa(1.0) values for Sydney, Inverness, and Victoria counties, adjusted for site class.
How do you model the weathered shale contact in the stability analysis?
We define a separate material layer with residual shear strength from ring shear tests (ASTM D6467) and assign a bilinear strength envelope. The contact is modeled as a thin interface element in RS2 or Plaxis, with pore‑pressure boundary conditions from piezometer readings.
What is the minimum factor of safety required for a permanent cut in Cape Breton?
Per FHWA-NHI-05-123 and NBCC 2020 recommendations, we target a static factor of safety of 1.5 for long‑term conditions and a pseudo‑static factor of 1.1 for the design earthquake. Temporary works during construction may use 1.3 static.
