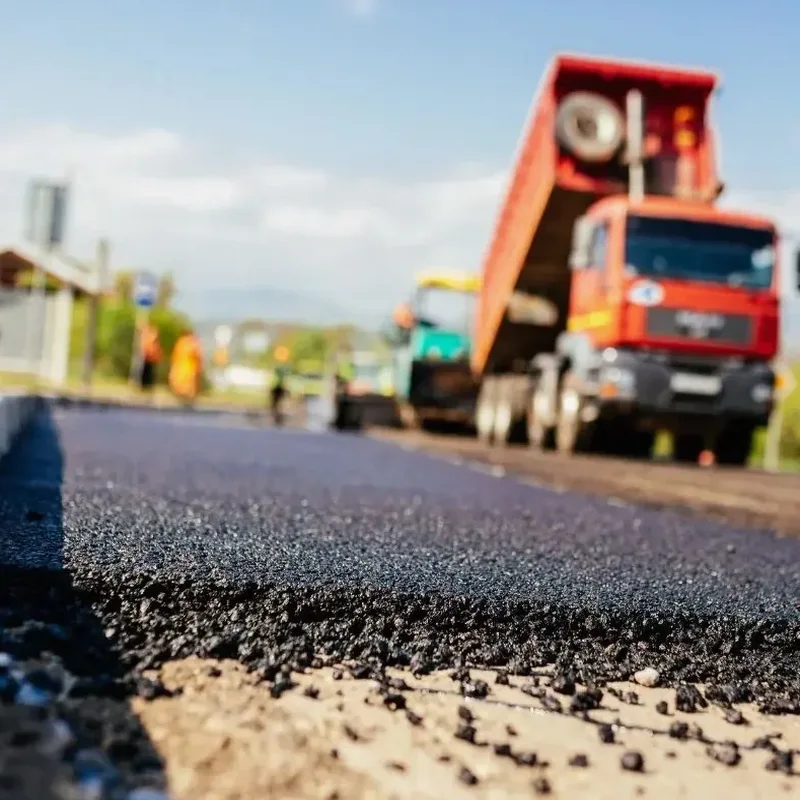

The soil compactor and nuclear density gauge are the first pieces of equipment that arrive at a Cape Breton paving job. But the pavement structure itself starts long before that—inside the lab, where the subgrade and aggregate layers are tested under cyclic loading. Cape Breton's terrain demands this. Glacial till, weathered shale, and soft organic deposits alternate across the island, and a pavement section that works near the Sydney waterfront can fail on a hillside in Baddeck if the granular base isn't properly specified. The CBR road test gives us the bearing capacity of the subgrade after saturation, while grain size analysis confirms whether the local aggregate meets the gradation bands for base and subbase courses. Every design we deliver includes layer thicknesses, modulus values, and a drainage plan that accounts for the freeze-thaw cycles typical of Cape Breton winters. We don't guess. We calculate.
A flexible pavement in Cape Breton must handle frost heave, spring thaw weakening, and heavy truck traffic—all within a design life that can exceed 20 years if the geotechnical assumptions are right.
Process and scope
Local considerations
Cape Breton's average elevation rises from sea level to over 530 meters in the Cape Breton Highlands, and with that elevation comes a dramatic increase in freeze-thaw frequency. Pavements in Cheticamp or Ingonish experience more than 60 freeze-thaw cycles per year. Each cycle can reduce the subgrade modulus by 20 to 40 percent during the spring thaw period if drainage is inadequate. The asphalt surface then fatigues prematurely, developing alligator cracking within the first three to five years. Another risk is differential settlement where the road crosses from cut to fill sections—common along the Cabot Trail. Without a proper geotechnical transition design, the pavement shears at the interface. We model these scenarios using layered elastic analysis software and recommend subsurface drainage, geotextile separators, or deeper granular replacement where the risk is high. A pavement failure on a remote Cape Breton road is not just inconvenient; it's a safety hazard and an expensive emergency repair.
Applicable standards
The AASHTO 1993 Guide for Design of Pavement Structures, ASTM D1557 (Modified Proctor), ASTM D1883 (CBR), ASTM D4318 (Atterberg Limits), ASTM D5918 (Frost Heave Susceptibility), and the TAC Pavement Design and Asset Management Guide are employed to establish geotechnical parameters and local methodology for flexible pavement design in Cape Breton.
Related services
Subgrade Evaluation and CBR Testing
Field sampling and laboratory soaked CBR tests to determine the bearing capacity of native soils. We map the subgrade strength across the alignment to identify weak zones before construction starts.
Granular Layer Design and Material Sourcing
Specification of gradation, plasticity, and crushing percentage for base and subbase aggregates. We test local quarry materials against ASTM and TAC gradation bands and recommend blending if needed.
Pavement Structural Design (AASHTO Method)
Calculation of the structural number (SN) and layer thicknesses using the AASHTO 1993 empirical method. Includes traffic loading analysis, environmental adjustments, and life-cycle cost comparison.
Frost Protection and Drainage Design
Design of granular frost tapers, edge drains, and subdrainage systems to prevent spring thaw weakening. Based on frost penetration depth and local precipitation data for Cape Breton.
Typical parameters
Questions and answers
What is the typical pavement structure for a Cape Breton rural road?
A common section on low-volume roads consists of 100 mm of asphalt over 200 mm of granular base over a prepared subgrade. The granular base thickness increases to 300 mm if the subgrade CBR is below 5 percent, and a geotextile separator is added between the subgrade and the base to prevent mixing of fines into the clean stone.
How much does a flexible pavement design cost in Cape Breton?
How do you account for freeze-thaw damage in the design?
We identify frost-susceptible soils through lab testing and either replace them or design a granular frost protection layer of sufficient thickness. The design also incorporates edge drains and cross-drainage to remove water quickly during the spring thaw, which is the most critical period for pavement performance in Cape Breton.
